Notification Center & Background Tools

A Kitto^x tool normally runs synchronously: the user clicks the toolbar button, the server produces the result (e.g. a CSV/Excel/PDF file) and streams it back as a download, all within the HTTP request. For a large export or a heavy report this blocks an Indy worker thread for seconds and leaves the user staring at a spinner.

With background execution the same tool runs on a separate worker pool, the request returns immediately, and the user keeps working. Progress and completion are surfaced by the notification center — a bell in the top-right corner — and the produced file is downloaded from there when ready.

Same tool, one flag

Background execution is opt-in per tool with a single YAML line — RunMode: Background. The tool's own code is unchanged: the framework decides whether to run it inline (foreground) or on a worker.

Enabling background execution

Add RunMode: Background to the tool's Controller node in the view metadata:

MainTable:
  Model: Activity
  Controller:
    ToolViews:
      DownloadCSV:
        DisplayLabel: Download in CSV
        ImageName: download
        Controller: ExportCSVTool
          RunMode: Background          # <-- run off the request thread
          RequireSelection: False
          ClientFileName: ActivityList.csv

Without RunMode (or with RunMode: Foreground) the tool behaves exactly as before — an immediate, inline download.

Which tools are supported

Background mode is supported for download-file tools — those that produce a file:

• ExportCSVTool, ExportTextTool, ExportXMLTool, ExportExcelTool
• MergePDFTool, the ReportBuilder tool, and any custom DownloadFile subclass.

A tool that is not a download-file controller reports a clear error if declared RunMode: Background.

What the user sees

• A bell icon appears in the top-right of the authenticated page (it uses the theme's Material icon style, so it matches the rest of the UI in light and dark).
• Launching a background tool shows a toast — "Operation started in the background…" — and the request returns at once.
• The bell shows a badge with the number of jobs currently in the list — it does not reset when a job completes, only when a job leaves the list. Clicking it opens the Notification center, listing the user's jobs, each with an action:
  • queued / running — a percentage that advances, and Cancel (✕) to stop it and drop it;
  • completed — a Download link (downloading removes it from the list) and Delete (✕: drop it without downloading);
  • failed — the error and Remove (✕);
  • interrupted — a job that was still running when the app was last restarted (it cannot resume); re-launch it, then Remove (✕).
• When a job completes a short toast announces it.
• A job leaves the list — and its artifact file is deleted — when it is downloaded, cancelled, deleted or removed.

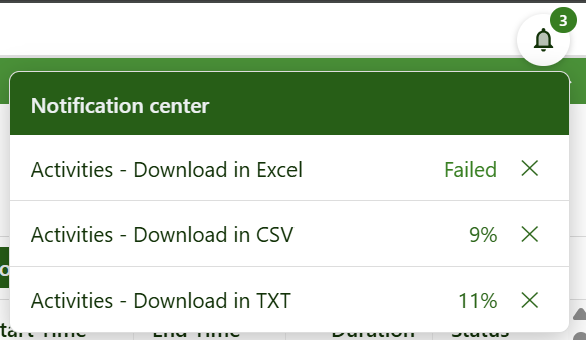

While the jobs run, the notification center shows each one advancing — here three exports launched together, one already failed and two still running with their percentage:

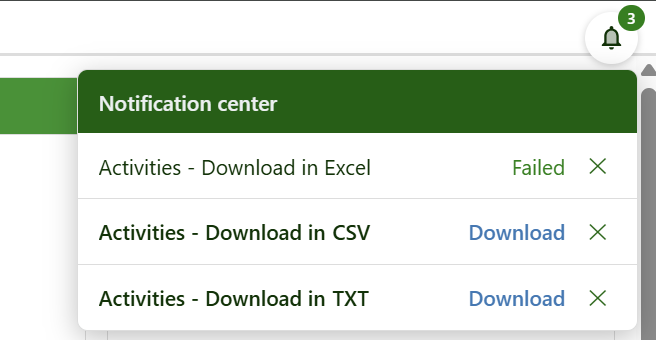

Once they finish, the completed jobs expose a Download link (and the failed one keeps its error), until each is downloaded or dismissed:

The full data set defined by the current grid filter is exported — not just the visible page — because the tool always loads all filtered records, independent of paging.

How it works

Browser ──click tool (RunMode: Background)──▶ TKWebApplication / view handler
                                              │  builds the data store here, on the
                                              │  request thread (field ACL is checked
                                              │  with the user's context), then submits
                                              ▼
                                         TKXJobQueue  (worker pool, separate from Indy)
                                              │  runs the tool against the pre-built store,
                                              │  writing the artifact to {JobsDir}\{user}\{id}\
                                              ▼
Notification center ◀── poll kx/notifications ── job status (running % / completed / failed)
        │
        └── Download ──▶ kx/job/{id}/download  (streams the artifact)

Key points:

• The data store is built on the request thread, where the per-request authentication and access control are available, so field-level ACL is respected exactly as in a foreground export. The store is then handed to the job; the worker only formats/writes it, so it never touches request-bound state.
• Jobs run on a dedicated worker pool (Server/Jobs/PoolSize, default 4), independent of the Indy request threads, so long operations never starve the HTTP pool.
• The produced file (artifact) is stored under {JobsDir}\{user}\{JobId}\ and served by kx/job/{JobId}/download. A user can only download their own jobs' artifacts.
• Long tools can report progress to the notification center; the built-in exporters already do.
• Jobs are persisted on disk: each writes a small job.json next to its artifact, in a per-user folder. On startup the queue reloads them, so a user finds their jobs again after logging out and back in, or after a process restart — completed results stay downloadable (e.g. the next morning). A job that was still running at the restart cannot be resumed and is marked interrupted.

Configuration

The bell is opt-in: it appears only when Notifications/Enabled is True (and the user is authenticated). Enable it in apps that run background tools:

# Show the notification-center bell (top-right). Off by default.
Notifications:
  Enabled: True

Server:
  Jobs:
    PoolSize: 4                  # concurrent background workers (default 4)
    Directory: %APP_PATH%Jobs    # where jobs + artifacts are stored (default {AppHome}\Jobs)
    ArtifactRetentionHours: 24   # auto-remove finished jobs (and their files) after N hours

Directory accepts macros (e.g. %APP_PATH%) exactly like UploadPath; jobs are organized in a per-user sub-folder under it.

Managing the list

The panel header has two actions (themed Material icons):

• Clear all (trash): removes all finished jobs (completed / failed / cancelled / interrupted) and their artifacts in one go. Jobs still queued or running are left untouched, so a bulk cleanup never cancels an operation in progress.
• Close (✕): hides the panel.

Downloads are fetched in the background (not a top-level navigation): if a download fails (e.g. the artifact expired), an error dialog is shown and the application stays open, instead of the browser navigating away to a blank error page.

Endpoints

Endpoint	Purpose
kx/notifications	HTML fragment with the current user's jobs (polled by the bell).
kx/job/{JobId}/download	Streams a completed job's artifact, then removes the job from the list.
kx/job/{JobId}/remove (POST)	Cancels a running job / deletes a completed one / dismisses a failed one, deleting its artifact.

Notes

• Persistence: jobs are persisted on the filesystem (a per-user job.json next to each artifact) and survive a process restart — completed results stay downloadable, while a job that was still running at the restart is marked interrupted and must be re-launched (there is no resume).
• Scope: single application instance; background mode applies to download-file tools.

See also

• Tool Controllers · DownloadFile
• Web Server Configuration
• Help Chat (in-app assistant) — the twin subsystem (shared worker-pool pattern)
