TasKitto

TasKitto is a sample application that manages a database of a few tables modeling a simple task tracking application. Use it together with the other example applications to explore Kitto^x and its features, or as a starting point for your own applications.

Copying and renaming the application directory and the project within is the fastest way to create a new application.

Live Demo

Click here to launch Live Demo of TasKitto

Demo accounts:

User name	Password	Role	What they see
guest	guest	viewer	All views read-only, except Users (hidden)
user	user	user	Full CRUD on every view, except Users (hidden)
admin	Nic2026Tita!	admin	Full CRUD everywhere — including the Users table

guest and user use the same password as their user name. The three accounts demonstrate the layered ACL design shipped with the demo.

Features

The features of Kitto^x used by TasKitto are:

• Multiple config files:
  • Config.yaml is the TasKitto application itself.
  • ConfigMini.yaml uses a different menu and strips down some elements to create a GUI usable on smartphones.
• FireDAC-based database connection to SQL Server, PostgreSQL or Firebird (selectable via DefaultDatabaseName in Config.yaml).
• Login with environment choice: a drop-down on the login page lets the user pick which of the three databases (SQL Server, PostgreSQL, Firebird) to log into; the choice is persisted across sessions.
• JWT authentication (Auth: JWT / Inner: TasKitto) — the demo's stateless authentication envelope: signed token in an HttpOnly cookie, environment carried in the db claim, ACL snapshotted in the kx_acl claim. See Config_AuthJWT.
• Three-tier RBAC ACL (AccessControl: JWT, closed-world) — wildcard read-only baseline + role-specific allows for admin/user/viewer + per-resource denies on the Users management view. See Sample ACL design.
• In-app ACL administration (admin only) — the Maintenance folder of the menu exposes auto-built grids for the KITTO_USER_ROLES and KITTO_PERMISSIONS tables (declared as View: Build AutoList directly against the model name, no dedicated view YAML required). Visibility is restricted to the admin role via two deny rows per table (metadata://View/KITTO_USER_ROLES/KITTO_PERMISSIONS denied to user and viewer). Logged-in admin users can add/remove role assignments and grant rows from the UI; TKDBAccessController re-reads the tables on the next login.
• DB authentication using a standard database table and clear passwords.
  • With passepartout option enabled.
• HTMX theming.
• Models and model relationships (references and details).
• Tree-based or Toolbar-based menu.
• Custom logo through the use of an HtmlPanel controller.
• Tabbed views (TabPanel controller).
• StatusBar controller.
• Data display and editing with rules.
• List grouping with a custom javascript template.
• List filtering with multiple user filters.
• Custom form layouts.
• Lookups on dynamic and fixed lists of values.
• Master/Detail display and edit forms.
• Grid cells coloring
• Download Tools:
  • Excel
  • Txt
  • CSV
• Reporting Tools:
  • PDF using Debenu Quick PDF
  • PDF using FOP
  • HTML using XSL-transformation
• Charts:
  • Pie Chart
  • Bar Chart
• Calendar: interactive activity calendar with month/week/day views and color-coded event types
• Data update: usage of a Form view)

Login with environment choice

TasKitto demonstrates the environment/database choice feature: the login page shows an "Environment" drop-down before the user name field, listing the three configured databases (SQL Server, PostgreSQL, Firebird). The user picks one, logs in, and that database becomes active for the entire session.

TasKitto is configured with Auth: JWT, so the choice rides inside the JWT db claim instead of a separate kx_db cookie: it survives across the entire token lifetime (slid on every active request) and is re-selected on the next login until the token finally expires. The active environment is shown in the StatusBar at the bottom of the home page via the %Auth:DatabaseName% macro.

The relevant Config.yaml setting:

Auth: TasKitto
  DatabaseChoices: FireDAC_MSSQL, FireDAC_PostgreSQL, FireDAC_Firebird

Each database under Databases carries an optional DisplayLabel (e.g. Database SQL Server) for the combo label.

Sample ACL design (three-tier)

TasKitto ships with a complete Access Control example exercising the three-layer pattern (wildcard baseline → role allows → per-resource denies) with three roles. The configuration uses AccessControl: JWT reading from the kx_acl claim snapshotted at login (with DB fallback enabled), backed by Auth: JWT / Inner: TasKitto — see JWT Authenticator for the envelope details.

The relevant Config.yaml settings:

Auth: JWT
  Inner: TasKitto
    ...

AccessControl: JWT

The framework auto-populates kx_acl at login because AccessControl: JWT is set; the controller is closed-world (anything not covered by the claim is denied).

The role matrix

The ACL uses ten rows in KITTO_PERMISSIONS and three roles in KITTO_USER_ROLES. The wildcard rule ('*', '*', 'VIEW,READ', '1') is the read-only baseline that lets every authenticated user open every view and read every cell. Role-specific rules add CRUD modes on top, and per-resource denies carve out exceptions:

Pattern	Grantee	Modes	Grant	Effect
*	*	VIEW,READ	1	Everyone sees every menu entry and reads every cell
*	admin	MODIFY,ADD,DELETE,RUN	1	admin role gets full CRUD on every view
*	user	MODIFY,ADD,DELETE,RUN	1	user role gets full CRUD on every view
metadata://View/Users	user	VIEW,READ,MODIFY,ADD,DELETE,RUN	0	user role: explicit deny on all modes for the Users view
metadata://View/Users	viewer	VIEW,READ,MODIFY,ADD,DELETE,RUN	0	viewer role: same deny on Users
metadata://View/KITTO_USER_ROLES	user	VIEW,READ,MODIFY,ADD,DELETE,RUN	0	user role: ACL administration is admin-only
metadata://View/KITTO_USER_ROLES	viewer	VIEW,READ,MODIFY,ADD,DELETE,RUN	0	viewer role: same deny on the user roles table
metadata://View/KITTO_PERMISSIONS	user	VIEW,READ,MODIFY,ADD,DELETE,RUN	0	user role: ACL administration is admin-only
metadata://View/KITTO_PERMISSIONS	viewer	VIEW,READ,MODIFY,ADD,DELETE,RUN	0	viewer role: same deny on the permissions table
metadata://View/ActivityInput	viewer	MODIFY,ADD,DELETE	0	viewer role: read-only on ActivityInput (demo of FALSE-priority on top of role allows)

Auto-built views and the metadata://View/<ModelName> URI

The two ACL administration views are declared in MainMenu.yaml as View: Build AutoList / Model: KITTO_USER_ROLES (and KITTO_PERMISSIONS) — there's no dedicated view YAML and therefore no PersistentName. The framework assigns MainTable.ModelName as the PersistentName the first time the menu renders (Kitto.Html.TreePanel.pas:122-130), so the URI seen by the access controller is metadata://View/KITTO_USER_ROLES (uppercase, exactly as the model name). Use the same pattern when you write deny rules for any other auto-built view in your apps.

How the three users experience this

The matrix produces three distinct experiences without enumerating per-view grants:

admin (role admin, login admin / Nic2026Tita!):

• Wildcard grants VIEW,READ on everything; the admin row adds MODIFY,ADD,DELETE,RUN on everything.
• No deny rules apply to the admin role.
• Result: full CRUD on every view, including Users, KITTO_USER_ROLES and KITTO_PERMISSIONS. Dashboard, charts, calendar, all reports — all accessible.

user (role user, login user / user):

• Same wildcard baseline + the user allow row gives full CRUD everywhere.
• The deny on metadata://View/Users, metadata://View/KITTO_USER_ROLES and metadata://View/KITTO_PERMISSIONS for the user role wins for all six standard modes (FALSE-priority break in TKUserPermissionStorage.GetAccessGrantValue).
• Result: full CRUD everywhere except the user-management and ACL administration views, which disappear from the menu (and any direct URL navigation is rejected).

guest (role viewer, login guest / guest):

• Only the wildcard baseline VIEW,READ matches at the role level — no viewer row grants MODIFY/ADD/DELETE/RUN, so those modes default to deny.
• The deny on metadata://View/Users, metadata://View/KITTO_USER_ROLES and metadata://View/KITTO_PERMISSIONS hides those menu entries just like for user.
• The deny on metadata://View/ActivityInput for MODIFY,ADD,DELETE is redundant for viewer (they have no allow on those modes anyway), but it is left in to demonstrate that an explicit deny on a specific URI still wins even when a future upgrade adds a wider allow rule (e.g. promoting viewer to user + a deny for compliance reasons).
• Result: every view visible and read-only, except the user-management/ACL views (hidden) and ActivityInput write actions (Add/Edit/Delete buttons hidden, double-click opens in ViewMode instead of EditMode).

Why this scales

The same pattern extends cleanly to dozens of roles and views without a permission-table explosion: each new role adds at most one allow row plus a small number of denies. The data shape stays small enough to fit comfortably in the kx_acl JWT claim (ten rows × ~80 bytes ≈ 800 bytes, well within the 4 KB cookie limit). See Config_AccessControl for the conceptual model and Config_AuthJWT for the JWT integration.

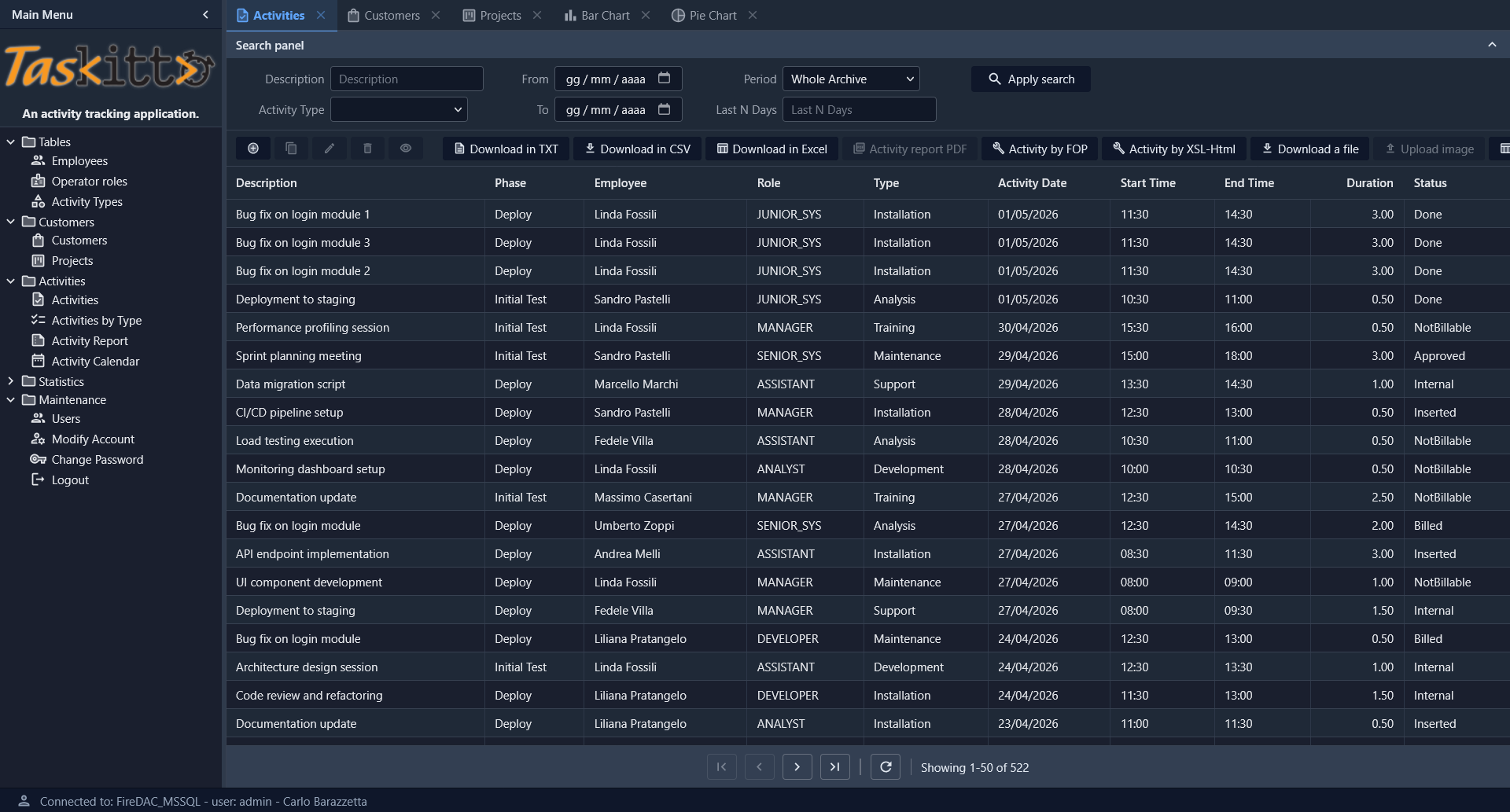

Activities List

The Activities view shows a full-featured List with search panel (filters by description, date range, activity type, period), toolbar with multiple export tools (TXT, CSV, Excel), reporting tools (PDF via FOP, HTML via XSL), and file upload capability.

Charts

TasKitto includes two chart views built with the ChartPanel controller, both displaying activity duration grouped by type.

Bar Chart

The Bar Chart view uses a WestController: GridPanel to display the data grid on the left, with the bar chart on the right showing duration in hours per activity type.

Pie Chart

The Pie Chart view uses a doughnut chart (with Donut: 50) and an EastController: GridPanel to show the data grid on the right. A left-docked legend identifies each activity type by color.

Activity Dashboard

The Activity Dashboard demonstrates the Dashboard controller with KPI cards, bar/pie charts, and a daily trend line chart, all arranged in a responsive FlexPanel grid.

The dashboard includes:

• 4 KPI cards in the first row (MaxColumns: 4): Monthly Activities, Hours, Active Projects, and Customers — each rendered with a TemplateDataPanel and a custom HTML template using {_ICON} for the Material Design icon
• 2 chart views in the second row: a bar chart showing activities grouped by status, and a pie chart showing hours by activity type
• 1 line chart spanning the full width: daily activity hours over a 30-day range centered on today

The KPI data comes from three SQL views (VW_KPI_MONTHLY, VW_ACTIVITY_BY_STATUS, VW_ACTIVITY_DAILY_RANGE) that aggregate data from the ACTIVITY table.

The Dashboard is the first entry in the Statistics menu folder.

Activity Calendar

The Activity Calendar view provides an interactive weekly calendar (with month and day views) powered by EventCalendar. Events are color-coded by activity type and display employee name, phase, and description. Navigation controls allow browsing between weeks, and a toolbar provides view, edit, and delete actions on selected events.

Deployment modes

TasKitto includes Delphi projects for all four deployment modes. All projects are in Examples/TasKitto/Projects/:

Project	Mode	Output
TasKitto.dpr	Standalone (GUI / Windows Service)	Home/TasKitto.exe
TasKittoDesktop.dpr	Desktop Embedded (WebView2)	Home/TasKittoDesktop.exe
TasKittoISAPI.dpr	ISAPI (IIS)	Home/TasKittoISAPI.dll
mod_taskitto.dpr	Apache Module	Home/mod_taskitto.dll

All projects share the same Source/ directory (UseKitto.pas, Rules.pas, Auth.pas) and the same Home/Metadata/ configuration. See the Deployment guide for step-by-step instructions for each mode.

Testing

In order to use TasKitto you need to create the database using the scripts or backup files provided in the Examples/TasKitto/DB directory, and edit Config.yaml so it points to your database and uses the correct authentication credentials.

Database scripts

The DB folder contains everything you need to recreate the TasKitto sample database on Firebird, Microsoft SQL Server or PostgreSQL. All three dialects share the same logical schema (tables KITTO_USERS, KITTO_USER_ROLES, KITTO_PERMISSIONS, CUSTOMER, PROJECT, PHASE, ACTIVITY, ACTIVITY_TYPE, EMPLOYEE, OPERATOR_ROLE plus the dashboard views) and the same sample data. Boolean columns (IS_ACTIVE, MUST_CHANGE_PASSWORD) use the native types of each engine: BIT on SQL Server, BOOLEAN on Firebird 3.0+ and PostgreSQL.

File	Engine	Purpose
Taskitto_SQLServer_DDL.sql	MS SQL Server	Tables, foreign keys, indexes, ACL tables (KITTO_USER_ROLES, KITTO_PERMISSIONS)
Taskitto_SQLServer_DDL_Views.sql	MS SQL Server	The five SQL views (ACTIVITY_BY_DATE, ACTIVITY_BY_TYPE, VW_ACTIVITY_BY_STATUS, VW_ACTIVITY_DAILY_RANGE, VW_KPI_MONTHLY) — kept in a separate file with GO separators because T-SQL requires CREATE VIEW to be the first statement of a batch
Taskitto_SQLServer_Data.sql	MS SQL Server	INSERT script with the sample data (6 customers, 9 employees, 9 projects, 6 user accounts including admin, user, guest and the layered ACL grants)
TasKitto_Firebird_DDL.sql	Firebird 3.0+	Tables + the same five views translated to Firebird dialect (COALESCE/CURRENT_DATE/DATEADD(DAY, -(EXTRACT(DAY FROM CURRENT_DATE) - 1), CURRENT_DATE) for the SQL Server ISNULL/GETDATE/DATEFROMPARTS idioms; FROM RDB$DATABASE for scalar-only views). Verified on Firebird 5.0 64-bit
TasKitto_Firebird_Data.sql	Firebird	Same sample data as the SQL Server script (TRUE/FALSE literals for the native BOOLEAN columns)
TasKitto_PostgreSQL_DDL.sql	PostgreSQL	taskitto schema, tables, constraints, indexes and the same five dashboard views in PostgreSQL dialect
TasKitto_PostgreSQL_Data.sql	PostgreSQL	Sample data + ACL grants

Creating the database on SQL Server

1. Create an empty database (for example TasKitto) on your SQL Server instance.
2. Run Taskitto_SQLServer_DDL.sql to create the tables, FKs and indexes.
3. Run Taskitto_SQLServer_DDL_Views.sql to create the five SQL views (the GO separators ensure each CREATE VIEW starts a fresh batch as required by T-SQL).
4. Run Taskitto_SQLServer_Data.sql to load the sample data and the ACL rows.
5. Update Home/Metadata/Config.yaml so the Databases node points to your SQL Server instance, and adjust authentication credentials (see Config_Databases). TasKitto ships with a FireDAC_MSSQL block ready to use.

Creating the database on PostgreSQL

1. Create an empty database (for example taskitto) on your PostgreSQL server, owned by a role of your choice (the example uses kittox_admin).
2. Run TasKitto_PostgreSQL_DDL.sql against the new database to create the taskitto schema, the tables, constraints and the four views used by the Activity Dashboard.
3. Run TasKitto_PostgreSQL_Data.sql to load the sample data.
4. In Home/Metadata/Config.yaml set DefaultDatabaseName: FireDAC_PostgreSQL and update the FireDAC_PostgreSQL block with your server, role and password. Make sure the Schema parameter matches the schema you created (default: taskitto) — this controls the search_path set for every connection. See the PostgreSQL Schema and search_path section.

All three dialects use native boolean types for IS_ACTIVE and MUST_CHANGE_PASSWORD: BIT on SQL Server, BOOLEAN on Firebird 3.0+ and PostgreSQL. The login query in Config.yaml is dialect-agnostic thanks to the %DB.TRUE% macro: WHERE IS_ACTIVE = %DB.TRUE% expands to = 1 on SQL Server and to = TRUE on Firebird and PostgreSQL.

Creating the database on Firebird

1. On Firebird 3.0+ (TasKitto is verified on Firebird 5.0 64-bit), create an empty database file via isql or your preferred tool, e.g.:

   create database 'D:\FirebirdDatabases\TASKITTO.FDB'
     user 'SYSDBA' password 'masterkey' default character set utf8;

2. (Optional) Add an alias to databases.conf so the connection string is TASKITTO instead of the full path.
3. Run TasKitto_Firebird_DDL.sql on the new database (isql -i TasKitto_Firebird_DDL.sql) to create the tables, FKs, indexes and the five views.
4. Run TasKitto_Firebird_Data.sql to load the sample data and the ACL rows.
5. In Home/Metadata/Config.yaml set DefaultDatabaseName: FireDAC_Firebird and update the FireDAC_Firebird block with your alias / path and credentials.

The pure-JS Firebird drivers used by some MCP servers and admin tools require WireCrypt = Disabled in firebird.conf (Firebird 3.0+ defaults to Required) and AuthServer = Srp, Srp256, Legacy_Auth + UserManager = Srp, Legacy_UserManager for username/password authentication.

Use the metadata of TasKitto as both example and study material. You can find more details about the features in this wiki or in the Kitto^x Reference.
