TStyledPanel Demo

Overview

This demo showcases the TStyledPanel component across all available style families, demonstrating how panels can be styled with the same three-tier system used for buttons (Family/Class/Appearance).

What You'll Learn

• How to use TStyledPanel with different families
• Available style classes for panels
• Different appearance variants (Normal, Outline)
• Creating card-like containers
• Info, warning, and error panels
• Dynamic panel creation
• DPI-aware panel scaling

Style Families

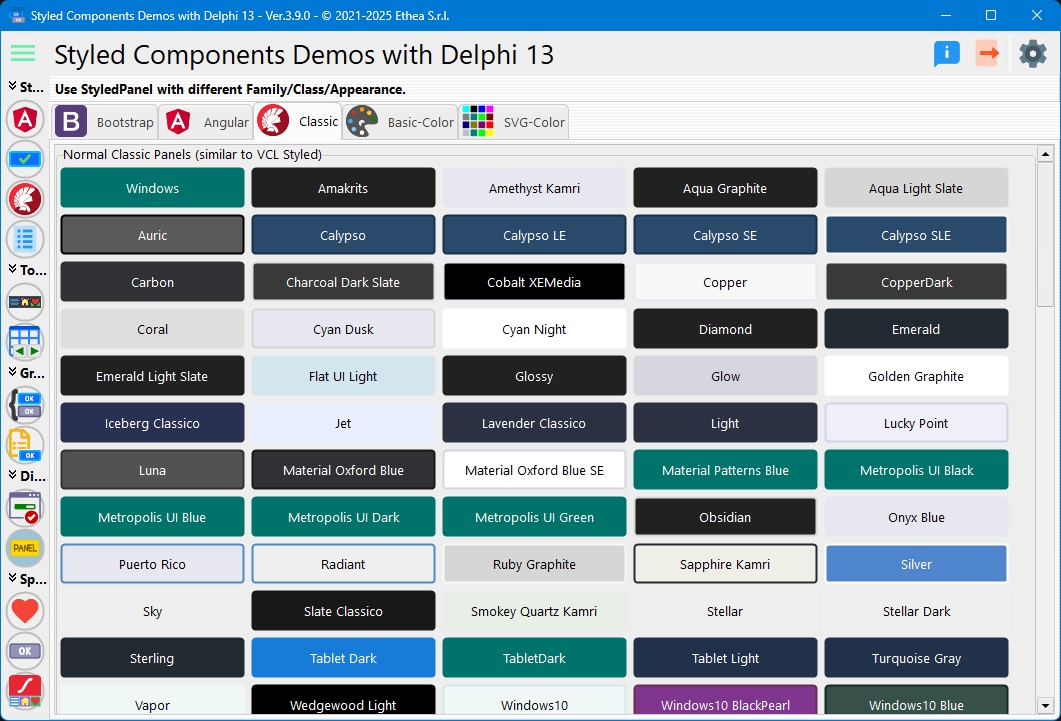

The demo organizes panels into tabs for each style family:

1. Classic Family

Traditional Windows-style panels:

• Appearances: Normal, Outline
• Use Case: Classic application interfaces

Classic Normal

Solid-colored panels with full backgrounds.

Classic Outline

Border-only panels with transparent backgrounds.

2. Bootstrap Family

Bootstrap-inspired panel styles:

• Classes: Primary, Secondary, Success, Danger, Warning, Info, Light, Dark
• Appearances: Normal, Outline
• Use Case: Modern web-like interfaces, alert panels, card containers

Bootstrap Normal

Full-colored panels perfect for:

• Alert boxes
• Information cards
• Status indicators
• Section containers

Bootstrap Outline

Outlined panels ideal for:

• Card borders
• Section dividers
• Subtle containers

3. Angular Family

Material Design-inspired panels:

• Themes: Light and Dark
• Classes: Primary, Accent, Warn, Basic colors
• Appearances: Raised, Stroked, Flat, Basic
• Use Case: Material Design applications

Angular Raised

Elevated panels with shadows (Material elevation).

Angular Stroked

Outlined panels with border emphasis.

Angular Flat

Flat panels without borders.

Angular Basic

Minimal panels with subtle backgrounds.

4. Basic-Color Family

Panels using standard color names:

• Classes: Red, Blue, Green, Yellow, etc.
• Appearances: Normal, Outline
• Use Case: Quick color-coded containers

5. SVG-Color Family

Extended color palette from SVG names:

• Classes: Full SVG color spectrum
• Appearances: Normal, Outline
• Use Case: Rich color variety for categorization

Dynamic Panel Creation

The demo dynamically creates panels for all classes in each family:

procedure TfmStyledPanel.BuildFamilyPreview(
  const AFamily: TStyledButtonFamily;
  const AAppearance: TStyledButtonAppearance;
  const AFlowPanel: TFlowPanel);
var
  J: Integer;
  LClasses: TButtonClasses;
  LStyledPanel: TStyledPanel;
begin
  LClasses := GetButtonFamilyClasses(AFamily);

  for J := 0 to Length(LClasses) - 1 do
  begin
    LStyledPanel := TStyledPanel.CreateStyled(Self,
      AFamily, LClasses[J], AAppearance);
    LStyledPanel.Width := PANEL_WIDTH;
    LStyledPanel.Height := PANEL_HEIGHT;
    LStyledPanel.Caption := LClasses[J];
    LStyledPanel.Hint := Format('%s/%s/%s',
      [AFamily, LClasses[J], AAppearance]);
    LStyledPanel.Parent := AFlowPanel;
  end;
end;

Common Use Cases

1. Alert Panels

Create informative alert boxes:

// Success alert
SuccessPanel := TStyledPanel.CreateStyled(Self,
  BOOTSTRAP_FAMILY,
  btn_success,
  BOOTSTRAP_NORMAL);
SuccessPanel.Caption := 'Operation completed successfully!';

// Warning alert
WarningPanel := TStyledPanel.CreateStyled(Self,
  BOOTSTRAP_FAMILY,
  btn_warning,
  BOOTSTRAP_NORMAL);
WarningPanel.Caption := 'Please review before proceeding';

// Error alert
ErrorPanel := TStyledPanel.CreateStyled(Self,
  BOOTSTRAP_FAMILY,
  btn_danger,
  BOOTSTRAP_NORMAL);
ErrorPanel.Caption := 'An error occurred';

2. Card Containers

Create card-style containers:

CardPanel := TStyledPanel.CreateStyled(Self,
  BOOTSTRAP_FAMILY,
  btn_light,
  BOOTSTRAP_OUTLINE);
CardPanel.StyleDrawType := btRoundRect;
CardPanel.StyleRadius := 8;
CardPanel.Caption := '';  // No caption for card
CardPanel.BevelOuter := bvNone;

// Add content controls inside
Label1.Parent := CardPanel;
Button1.Parent := CardPanel;

3. Section Dividers

Create visual section separators:

SectionPanel := TStyledPanel.CreateStyled(Self,
  BOOTSTRAP_FAMILY,
  btn_primary,
  BOOTSTRAP_NORMAL);
SectionPanel.Height := 40;
SectionPanel.Align := alTop;
SectionPanel.Caption := 'Settings Section';
SectionPanel.Font.Style := [fsBold];

4. Status Indicators

Show status with colored panels:

case Status of
  stActive:
    StatusPanel.SetPanelStyle(BOOTSTRAP_FAMILY, btn_success, BOOTSTRAP_NORMAL);
  stPending:
    StatusPanel.SetPanelStyle(BOOTSTRAP_FAMILY, btn_warning, BOOTSTRAP_NORMAL);
  stError:
    StatusPanel.SetPanelStyle(BOOTSTRAP_FAMILY, btn_danger, BOOTSTRAP_NORMAL);
  stInactive:
    StatusPanel.SetPanelStyle(BOOTSTRAP_FAMILY, btn_secondary, BOOTSTRAP_NORMAL);
end;

Panel Properties

StyleDrawType

Control panel shape:

Panel.StyleDrawType := btRoundRect;  // Rounded corners
Panel.StyleDrawType := btRounded;    // Fully rounded
Panel.StyleDrawType := btRect;       // Rectangle
Panel.StyleDrawType := btEllipse;    // Circular (width = height)

StyleRadius

Set corner radius (for btRoundRect):

Panel.StyleRadius := 8;  // 8-pixel corner radius

ShowCaption

Control caption visibility:

Panel.ShowCaption := True;   // Show caption
Panel.ShowCaption := False;  // Hide caption (container only)

Unique Architecture

Unlike buttons, TStyledPanel uses a simplified architecture:

• Uses TStyledButtonAttributes directly (not TStyledButtonRender)
• Lightweight rendering
• Optimized for container use
• Full DPI awareness

This was developed using the Vibe Coding technique with Claude Code, making it highly efficient for panel scenarios.

Creating Panels Programmatically

Simple Panel

var
  Panel: TStyledPanel;
begin
  Panel := TStyledPanel.CreateStyled(Self,
    BOOTSTRAP_FAMILY,
    btn_primary,
    BOOTSTRAP_NORMAL);
  Panel.Parent := Self;
  Panel.Align := alTop;
  Panel.Height := 50;
  Panel.Caption := 'Header';
end;

Info Panel with Content

var
  InfoPanel: TStyledPanel;
  InfoLabel: TLabel;
begin
  InfoPanel := TStyledPanel.CreateStyled(Self,
    BOOTSTRAP_FAMILY,
    btn_info,
    BOOTSTRAP_OUTLINE);
  InfoPanel.Parent := Self;
  InfoPanel.Align := alTop;
  InfoPanel.StyleDrawType := btRoundRect;
  InfoPanel.StyleRadius := 6;
  InfoPanel.ShowCaption := False;

  InfoLabel := TLabel.Create(Self);
  InfoLabel.Parent := InfoPanel;
  InfoLabel.Caption := 'This is an informational message';
  InfoLabel.Align := alClient;
  InfoLabel.Alignment := taCenter;
  InfoLabel.Layout := tlCenter;
end;

Nested Panels

var
  OuterPanel, InnerPanel: TStyledPanel;
begin
  OuterPanel := TStyledPanel.CreateStyled(Self,
    BOOTSTRAP_FAMILY,
    btn_light,
    BOOTSTRAP_OUTLINE);
  OuterPanel.Parent := Self;
  OuterPanel.ShowCaption := False;

  InnerPanel := TStyledPanel.CreateStyled(OuterPanel,
    BOOTSTRAP_FAMILY,
    btn_primary,
    BOOTSTRAP_NORMAL);
  InnerPanel.Parent := OuterPanel;
  InnerPanel.Align := alTop;
end;

Layout with Panels

Dashboard Layout

// Top header
HeaderPanel.Align := alTop;
HeaderPanel.SetPanelStyle(BOOTSTRAP_FAMILY, btn_dark, BOOTSTRAP_NORMAL);

// Left sidebar
SidebarPanel.Align := alLeft;
SidebarPanel.SetPanelStyle(BOOTSTRAP_FAMILY, btn_light, BOOTSTRAP_OUTLINE);

// Client area
ClientPanel.Align := alClient;
ClientPanel.ShowCaption := False;

// Bottom status bar
StatusPanel.Align := alBottom;
StatusPanel.SetPanelStyle(BOOTSTRAP_FAMILY, btn_secondary, BOOTSTRAP_NORMAL);

Scrolling with Many Panels

The demo uses ScrollBox containers with mouse wheel support:

procedure TfmStyledPanel.ScrollBoxMouseWheel(
  Sender: TObject;
  Shift: TShiftState;
  WheelDelta: Integer;
  MousePos: TPoint;
  var Handled: Boolean);
var
  LScrollBox: TScrollBox;
begin
  if Sender is TScrollBox then
  begin
    LScrollBox := TScrollBox(Sender);
    LScrollBox.VertScrollBar.Position :=
      LScrollBox.VertScrollBar.Position - (WheelDelta div 4);
    Handled := True;
  end;
end;

Key Differences from TPanel

TStyledPanel adds:

1. StyleFamily Property: Choose from multiple families
2. StyleClass Property: Select specific color/style
3. StyleAppearance Property: Normal, Outline, etc.
4. StyleDrawType: Rounded, RoundRect, Rect, Ellipse
5. Modern Rendering: GDI+ antialiased graphics
6. DPI Awareness: Automatic scaling
7. Consistent Look: Independent of VCL Styles

Migration from TPanel

// Old code:
// var
//   Panel1: TPanel;

// New code:
var
  Panel1: TStyledPanel;

// All TPanel properties still work!
Panel1.Caption := 'My Panel';
Panel1.Align := alTop;
Panel1.BevelOuter := bvNone;

// Plus new styling:
Panel1.StyleFamily := BOOTSTRAP_FAMILY;
Panel1.StyleClass := btn_primary;
Panel1.StyleAppearance := BOOTSTRAP_NORMAL;
Panel1.StyleDrawType := btRoundRect;

Technical Details

Source Location

Demos/source/StyledPanelForm.pas

Component Source

source/Vcl.StyledPanel.pas

Supported Versions

All Delphi versions (XE6+)

Key Properties

Property	Description
StyleFamily	Style family (Bootstrap, Angular, etc.)
StyleClass	Color/style class
StyleAppearance	Appearance variant
StyleDrawType	Panel shape
StyleRadius	Corner radius
ShowCaption	Display caption
Caption	Panel caption text

Development Notes

This component was developed using Vibe Coding with Claude Code, an AI-assisted development technique that enabled rapid prototyping and implementation.
