Family, Class & Appearance Demo

Overview

This demo showcases the three-tier styling system of StyledComponents, allowing you to explore all available Families, Classes, and Appearances combinations.

What You'll Learn

• How to use different StyleFamily options
• Available StyleClass values for each family
• Different StyleAppearance variants
• How to combine families, classes, and appearances
• Icon positioning and alignment options
• Notification badges on buttons

Style Families

The demo organizes button examples into tabs for each style family:

1. Bootstrap Family

Inspired by Bootstrap framework styles:

• Classes: Primary, Secondary, Success, Danger, Warning, Info, Light, Dark
• Appearances: Normal, Outline
• Use Case: Modern web-like interfaces

Bootstrap Normal

Full-colored buttons with solid backgrounds.

Bootstrap Outline

Border-only buttons with transparent backgrounds.

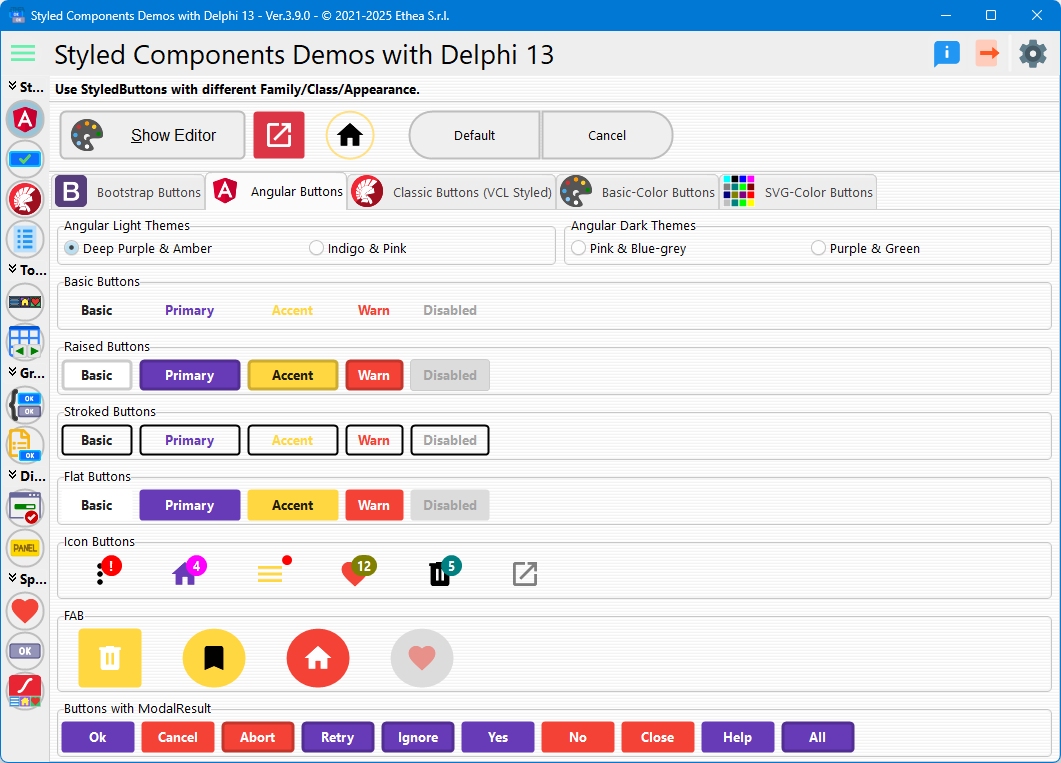

2. Angular Family

Based on Angular Material Design:

• Light Theme: Deep Purple, Indigo, Pink, Amber, Blue-Grey, Green
• Dark Theme: Pink, Purple with complementary accents
• Appearances: Raised, Stroked, Flat, Basic
• Special Buttons: FAB (Floating Action Buttons), Icon Buttons

Angular Raised

Elevated buttons with shadows (Material Design elevation).

Angular Stroked

Outlined buttons with border emphasis.

Angular Flat

Flat buttons without borders or backgrounds.

Angular Basic

Minimal style with text-only appearance.

FAB Buttons (Floating Action Buttons)

Circular buttons using StyleDrawType := btEllipse:

• Icon-only display
• Perfect for primary actions
• Material Design compliant

Icon Buttons

Square buttons with only icons:

• No captions
• ImageAlignment := iaCenter
• Compact layout

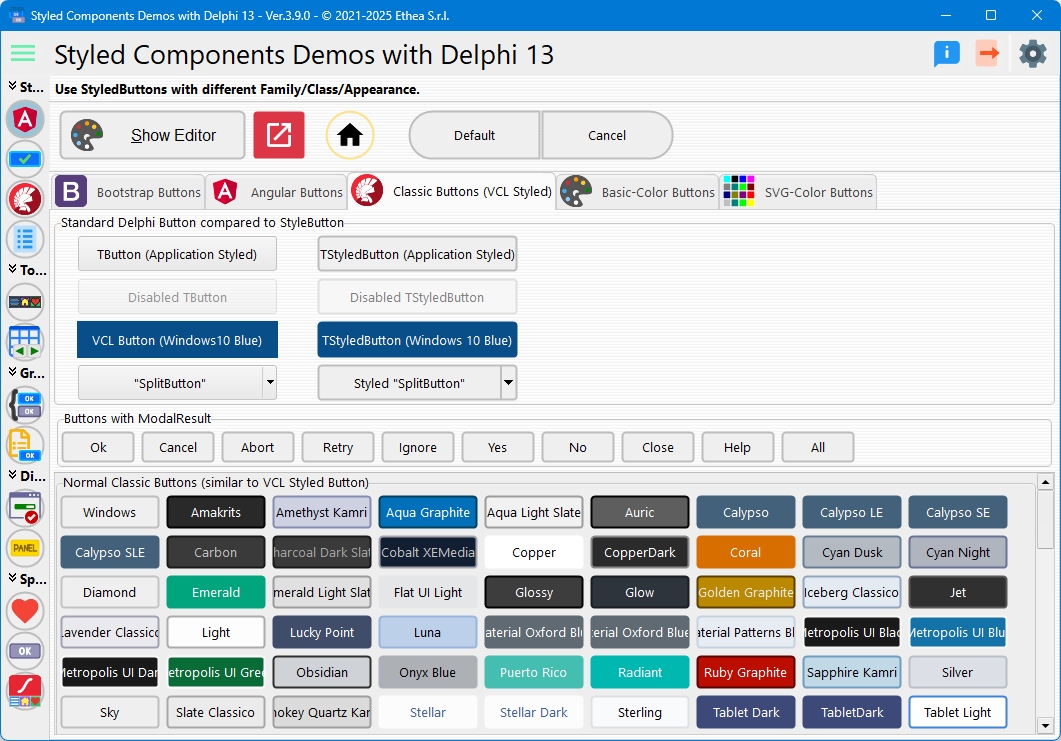

3. Classic Family

Traditional Windows-style buttons:

• Classes: Named after standard colors (Red, Blue, Green, etc.)
• Appearances: Normal, Outline
• Use Case: Classic Windows applications

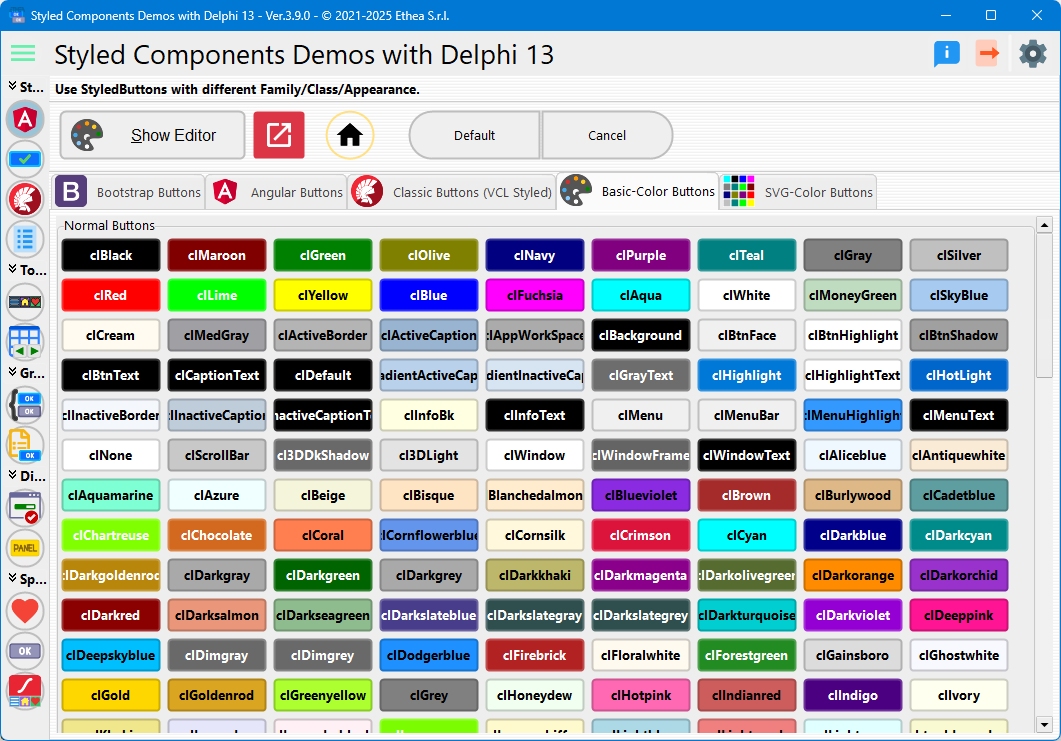

4. Basic-Color Family

Buttons styled with actual color values:

• Classes: Actual color names (Red, Blue, Green, Yellow, etc.)
• Appearances: Normal, Outline
• Use Case: Quick color-coded interfaces

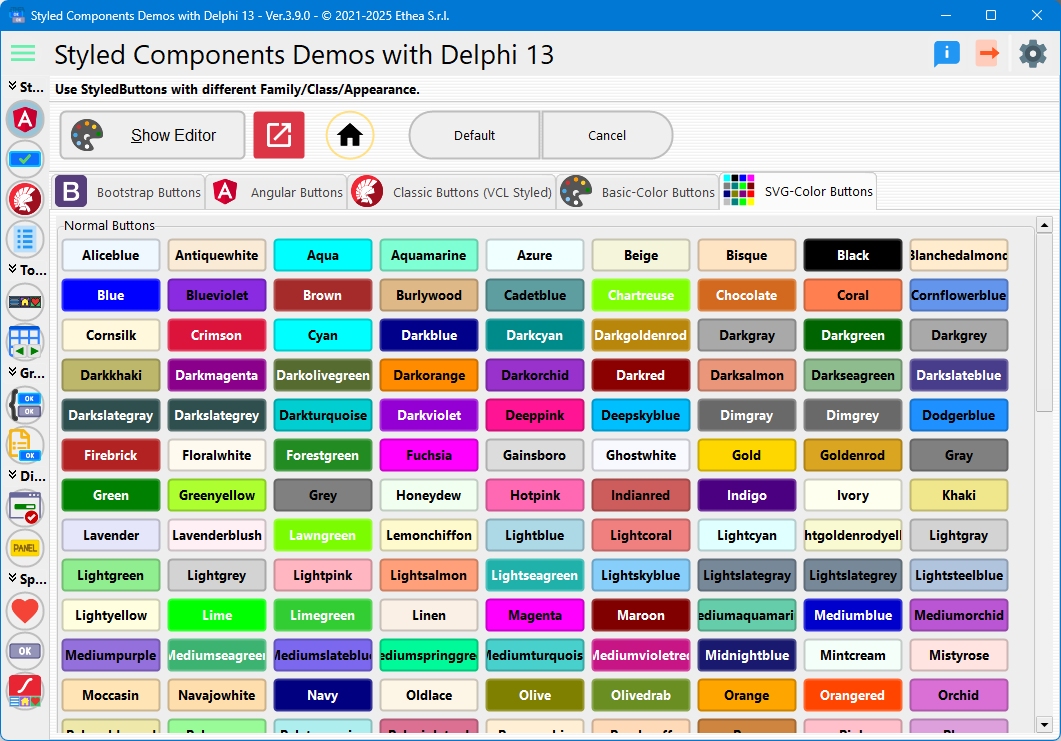

5. SVG-Color Family

Extended color palette from SVG color names:

• Classes: Full SVG color spectrum (Crimson, DodgerBlue, ForestGreen, etc.)
• Appearances: Normal, Outline
• Use Case: Rich color variety

Dynamic Button Creation

The demo dynamically creates buttons for all available classes in each family:

procedure TfmStyledButtons.BuildFamilyPreview(
  const AFamily: TStyledButtonFamily;
  const AAppearance: TStyledButtonAppearance;
  const AFlowPanel: TFlowPanel);
var
  LClasses: TButtonClasses;
  LStyledButton: TStyledButton;
begin
  LClasses := GetButtonFamilyClasses(AFamily);

  for J := 0 to Length(LClasses)-1 do
  begin
    LStyledButton := TStyledButton.CreateStyled(Self,
      AFamily, LClasses[J], AAppearance);
    LStyledButton.Caption := LClasses[J];
    LStyledButton.Parent := AFlowPanel;
  end;
end;

Modal Result Integration

The demo includes sections showing how buttons automatically style based on ModalResult:

Bootstrap ModalResult Buttons

• mrOk, mrYes: btn_success (green)
• mrNo, mrAbort: btn_danger (red)
• mrCancel: btn_secondary (gray)
• mrHelp: btn_info (blue)

Angular ModalResult Buttons

• mrOk, mrYes: Primary color
• mrNo, mrAbort: Warn color
• mrCancel: Basic style
• mrHelp: Accent color

Classic ModalResult Buttons

• Uses appropriate classic colors based on action type

Special Features

Notification Badges

The demo includes a timer-based notification badge example:

procedure TfmStyledButtons.BadgeTimerTimer(Sender: TObject);
begin
  Inc(FNotificationCount);
  btn_IconHome.NotificationBadge.NotificationCount := FNotificationCount;
end;

Image Positioning

Examples of ImageAlignment property:

• iaLeft: Icon on the left of caption
• iaRight: Icon on the right of caption
• iaTop: Icon above caption
• iaBottom: Icon below caption
• iaCenter: Icon only, no caption

Caption Alignment

Examples of CaptionAlignment property:

• taLeftJustify: Left-aligned text
• taCenter: Centered text
• taRightJustify: Right-aligned text

Theme Switching

The Angular tab includes theme switchers:

Light Themes

• Deep Purple & Amber: Purple primary with amber accents
• Indigo & Pink: Indigo primary with pink accents

Dark Themes

• Pink & Blue-Grey: Pink primary with blue-grey accents
• Purple & Green: Purple primary with green accents

Changing themes updates all Angular buttons and icons dynamically.

Interactive Features

Button Style Editor

Click the "Edit Style" button to open the Styled Button Editor:

• Visual style selection
• Real-time preview
• All properties exposed

Square and Circular Buttons

Special buttons demonstrate different StyleDrawType:

• Square: btRect - Perfect rectangles
• Circular: btEllipse - Perfect circles

Technical Details

Source Location

Demos/source/StyledButtonsForm.pas

Supported Versions

• Delphi 10.3+ (with ImageCollection support)
• Delphi XE6-10.2 (with legacy ImageList)

Key Components Used

• TStyledButton
• TFlowPanel (for dynamic layout)
• TPageControl (for family tabs)
• TVirtualImageList or TImageList

See Also

• TStyledButton Reference - Complete button documentation
• TStyledGraphicButton Reference - Graphic button variant
